Product advantages:

(1) The transformer adopts a fully oil-filled, sealed corrugated oil tank. This oil tank has high mechanical strength, is not easy to leak, ensures isolation from the outside air, and prevents oil aging; and its own elasticity adapts to the fluidity and expansion of the oil, greatly improving the product's heat dissipation capacity;

(2) The iron core is made of high-quality, high-performance, high-magnetic conductivity cold-rolled silicon steel sheets, with high efficiency and low loss;

(3) The high-voltage winding adopts a layered structure; the low-voltage winding below 500KVA is layered, and 630KVA and above adopt a new spiral structure. High mechanical strength, strong product short-circuit resistance

(4) Both high and low voltage windings use oxygen-free copper wires and adopt a multi-layer cylindrical structure. The body also has an additional positioning structure. All fasteners are specially relaxed to ensure that the fasteners do not loosen during long-term operation.

(5) The transformer adopts a fully oil-filled, sealed corrugated oil tank. This type of oil tank has a simple process, high mechanical strength, good welding, and is not easy to leak. It ensures isolation from the outside air and prevents oil aging. The strong fluidity of the oil greatly improves the product's heat dissipation capacity.

Product Application

This series is widely used in power plants, substations, industrial and mining enterprises, ports, airports and other indoor or outdoor places.

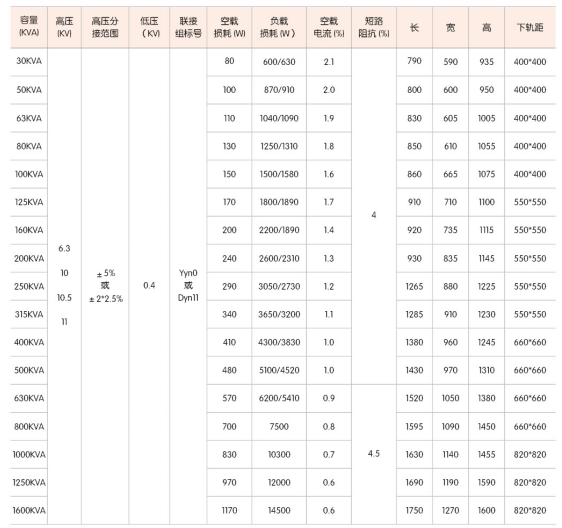

Product Parameters
