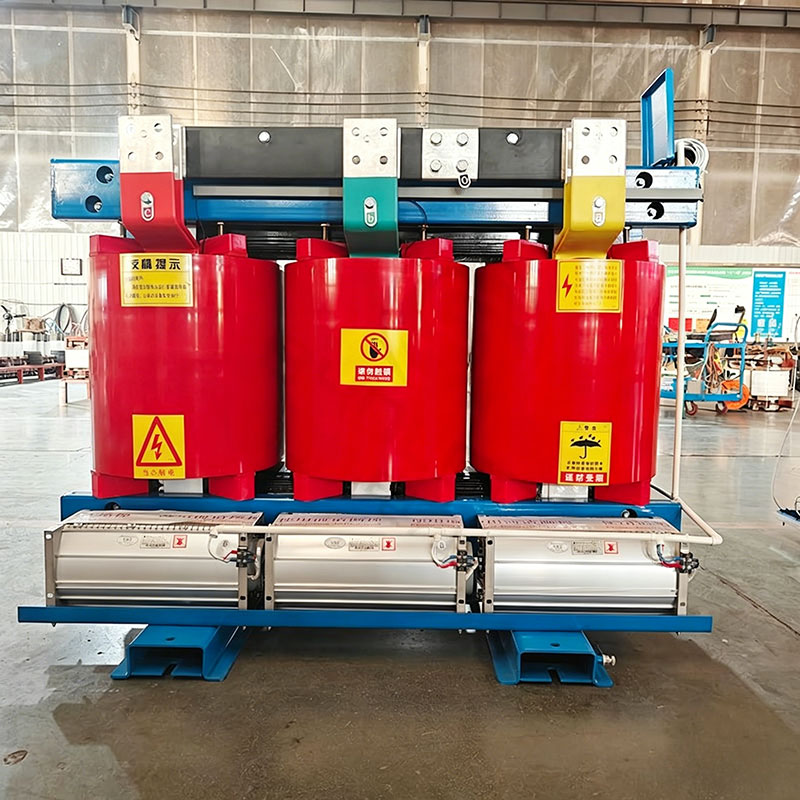

Since the coil of SCB series epoxy resin dry-type transformer is encapsulated by epoxy resin, it is flame retardant, fireproof, explosion-proof, maintenance-free, pollution-free, small in size, and can be directly installed at the load center. At the same time, the core material is made of high-quality cold-rolled oriented silicon steel sheets, full-slant street seam stacked structure, scientific and reasonable design and casting process, so that the product has smaller partial discharge, lower noise, and stronger heat dissipation capacity. The product is also equipped with an intelligent temperature controller, which has fault alarm, over-temperature alarm, over-temperature tripping and black box functions, and is connected to the computer through the RS485 serial interface for centralized monitoring and control.

Product advantages:

1. The core is made of high-quality cold-rolled grain-oriented silicon steel sheets, and the core silicon steel sheets adopt 45-degree full-bevel joints to allow the magnetic flux to pass along the direction of the silicon steel sheet joints

2. Adopting domestic advanced technology, it has high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, high reliability and long service life;

3. Safe, fireproof, pollution-free, and can be directly operated at the load center;

4. Low loss, low noise, obvious energy-saving effect, maintenance-free;

5. Good heat dissipation performance, strong overload capacity, and can increase capacity operation when forced air cooling;

6. Good moisture-proof performance, suitable for operation in high humidity and other harsh environments;

7. Dry-type transformers can be equipped with a complete temperature detection and protection system. The intelligent signal temperature control system can automatically detect and display the operating temperature of each three-phase winding, automatically start and stop the fan, and have alarm, trip and other function settings;

8. Small size, light weight, small footprint, low installation cost

Product application:

Due to the advantages of strong short-circuit resistance, low maintenance workload, high operating efficiency, small size and low noise, dry-type transformers are often used in places with high requirements for fire protection and explosion protection. Such as hotels, restaurants, airports, high-rise buildings, commercial centers, residential areas and other important places, as well as subways, metallurgical plants, ships, offshore drilling and platforms and other places with harsh environments.
